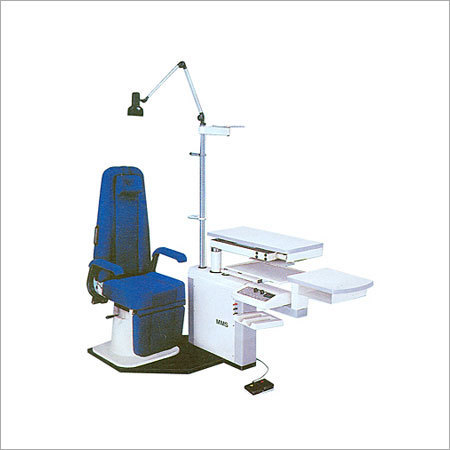

Ophthalmic Refraction Unit

Ophthalmic Refraction Unit
Ophthalmic Refraction Unit
Product Code : MMS-100
Brand Name : MMS
Product Description

 Minimum Area Chair

Up/Down Back (Forward) By DC motor 24 V
Headset Detachable
Elevation Stroke 190 mm
Seat Height 560 mm X 760 mm
Inclination of Backseat 100 to 175 Degrees
Rotation 0 to 180 Degree
Foot Switch For Up/Down of Chair only
Arm Rest Moulded Polyurathene
Input Tension 240 V DC
Net Weight 98 Kgs
Load Lifting Capacity 180 Kgs
Required 2450 mm X 1300 mm in fully reclined position

1700 mm X 1300 mm in errect position

Standard Unit
Slide Table Stroke 345 mm
Power Supply 0, 2.5 3, 6 & 12 V

Selections for Table Mounted Equipments
Height Adjustment 560 mm X 760 mm
Safety Stopper Available
Height from Floor 870 mm
Tray Movement 0 to 90 Degrees ( Rotated)
Table Top Size 400 mm X 810 mm
Trial Lens Set Tray Size 520 mm X 340 mm X 50 mm
Base Plate 770 mm X 730 mm
Main Unit Body 700 mm X 480 mm x 220 mm
Light Pole Length 1800 mm X 22.5 mm Diameter
Prescription 400 mm X 400 mm
Fuse Slow Bow Type
Power Source 220 V AC
Net Weight 152 Kgs


  • A Multi functional unit for comfortable usage by Ophthalmologist providing optimum utilization and patient's comfort.
  • With hands on control panel for Overhaul Lamp, Silt Lamp, Auto Refractometer, Ophthalmoscope/Ratinoscope, chair elevation & auxiliary outlet, this versatile unit has effortless lateral movement.
  • The chair can be rotated 180° around vertical axis with an electrical input.
  • Can be locked at any position
  • This elegant smooth and noiseless chair can receive up to 180° through motioned movement converting it into minor surgery table
