Ophthalmic Imaging Systems

Ophthalmic Imaging Systems
Ophthalmic Imaging Systems
Product Code : scan0006
Brand Name : Mahajan ophthalmic
Product Description

The Product

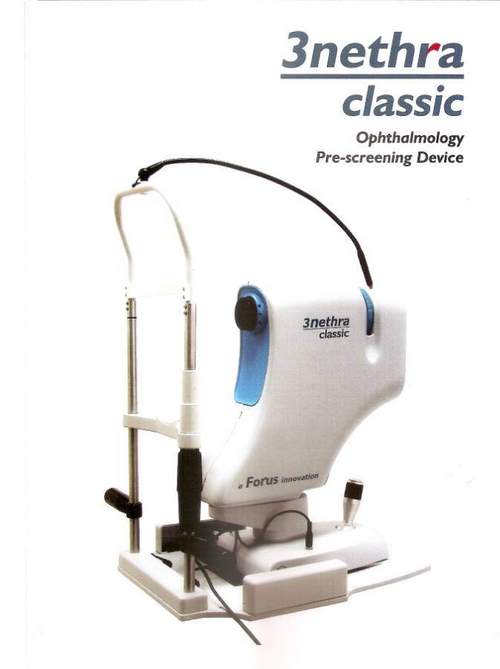

The 3nethra classic is a multi function non-invasive ophthalmic imaging system,designed as a non mydriatic camera to be operated by ophthalmic technicians.

  • Its main objective is to complement the services of a cataract specialist,a diabetic retinopathy specialist and a glaucoma specialt into remote geographics,through the process of pree-screening.
  • 3nethra is uniquely designed to include all those functions of a typical fundus camera,a slit lamp that are essential for a pre-scanning.
  • 3nethra incorporates an intelligent system that enables non-mydriatic screening and semi-skilled operation

THe 3nethra classic is an indigenous non-mydriatic camera,comprising an imaging unit and,an 'Operational Console'.

 The imaging unit consist of a camera mounted on a stand for positioning the subjects eyes for corneal and retinal imaging.

The operator console is an off-the-self windows PC,running the '3nethra software',that aids in imaging,analysis and communication.

Aminimal installation consist of a 3nethra imaging unit,a deicated operator console System,connected over an USB-2.0 interface.

Image Resolution                                                     -                 1024 * 768-24 bits per pixel

Minimum Pupil Diameter                                        -                  4mm

Field Of View                                                           -                  45 degrees

Pre Image Capture Adjustments                           -     Intensity control,Gamma Maping,Image Balance

Focus Guidance                 -        Graphics to aid automatic capture of image when perfect focus is attained

Post Image Capture Adjustment - Brightness,Contrast,Noise Reduction,Feature enhancement
